Chint NC2 contactors range from 55KW to 335KW and are available in a choice of coil voltages and also in 3 or 4 pole. A wide range of accessories are on offer such as thermal overloads, auxiliary contacts and spare coils. For smaller KW ratings we have a range of NC1 contactors ranging from 4KW to 45KW.

Specification

• Current Ratings:
  – AC3 current rating: 55KW / 115 amp up to 335KW / 630 amp.
  – AC1 current rating: 200 amp to 800 amp.
• Chint contactors are available in a choice of the most popular coil voltages including 110V, 230V and 415V. 24V and 48V available on request.
• Din rail mountable or fitted with holes for direct screw mounting onto a surface or mounting plate.
• Available in 3 pole or 4 pole varieties and with a selection of auxiliary contacts.

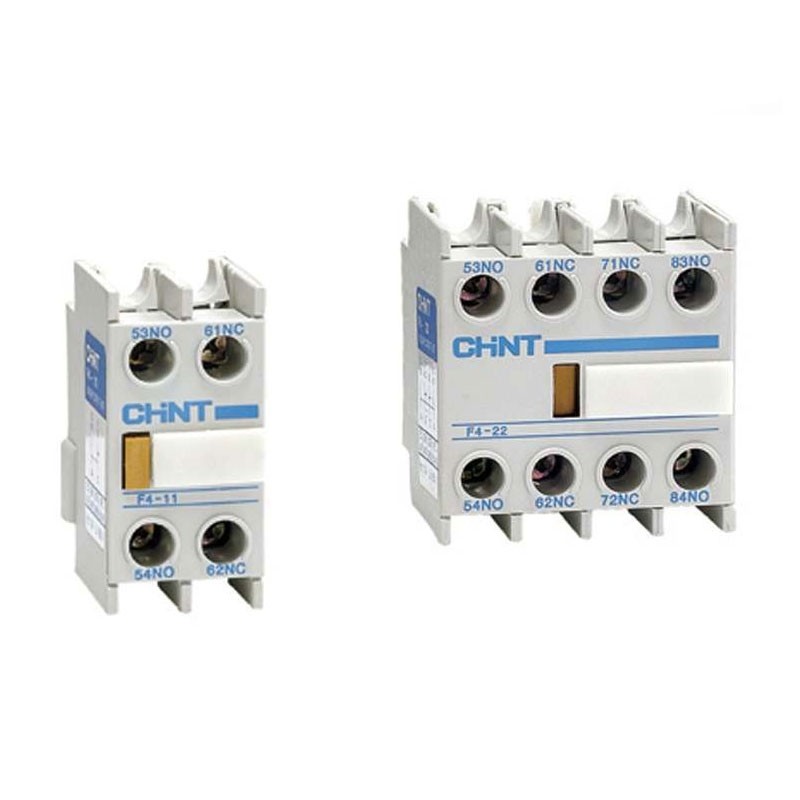

• If additional contacts are required we have a range of top mount auxiliaries available.
